Conjoint Part-Worths Calculation

Calculating Part-Worths Values:

We use the following algorithm to calculate CBC Conjoint Part-Worths:


    Let there be R respondents, with individuals r = 1 ... R

    Let each respondent see T tasks, with t = 1 ... T

    Let each task t have C configurations (or concepts), with c = 1 ... C (C in our case is usually 3 or 4)

    If we have A attributes, a = 1 to A, with each attribute having La levels, l = 1 to La, then the part-worth for a

    particular attribute/level is w’(a,l). It is this (jagged array) of part worths we are solving for in this exercise. We can

    simplify this to a one-dimensional array w(s), where the elements are:

         {w’(1,1), w’(1,2) ... w’(1,L1), w’(2,1) ... w’(A,LA)} with w having S elements.

    A specific configuration x can be represented as a one-dimensional array x(s), where x(s)=1 if the specific

    level/attribute is present, and 0 otherwise.

    Let Xrtc represent the specific configuration of the cth configuration in the tth task for the rth respondent. Thus the

    experiment design is represented by the four dimensional matrix X with size RxTxCxS

    If respondent r chooses configuration c in task t then let Yrtc=1; otherwise 0.


    The Utility Ux of a specific configuration is the sum of the part-worths for those attribute/levels present in the configuration, i.e. it is the scalar product x.w


    For a simple choice between two configurations, with utilities U1 and U2, the MNL model predicts that configuration 1 will be chosen

         EXP(U1)/(EXP(U1) + EXP(U2)) of the time (a number between 0 and 1).

    For a choice between N configurations, configuration 1 will be chosen

         EXP(U1)/(EXP(U1) + EXP(U2) + ... + EXP(UN)) of the time.


    Let the choice probability (using MNL model) of choosing the cth configuration in the tth task for the rth respondent be:

         Prtc=EXP(xrtc.w)/SUM(EXP(xrt1.w), EXP(xrt2.w), ... , EXP(xrtC.w))


    The Log-Likelihood measure LL is calculated as:

    Prtc is a function of the part-worth vector w, which is the set of part-worths we are solving for.


    We solve for the part-worth vector by finding the vector w that gives the maximum value for LL. Note that we are solving for S variables.

    This is a multi-dimensional non-linear continuous maximization problem, and requires a standard solver library. We use the Nelder-Mead Simplex Algorithm.

    The Log-Likelihood function should be implemented as a function LL(w, Y, X), and then optimized to find the vector w that gives us a maximum. The responses Y, and the design X are given, and constant for a specific optimization. Initial values for w can be set to the origin 0.

    The final part-worths w are re-scaled so that the part-worths for any attribute have a mean of zero, simply by subtracting the mean of the part-worths for all levels of each attribute.

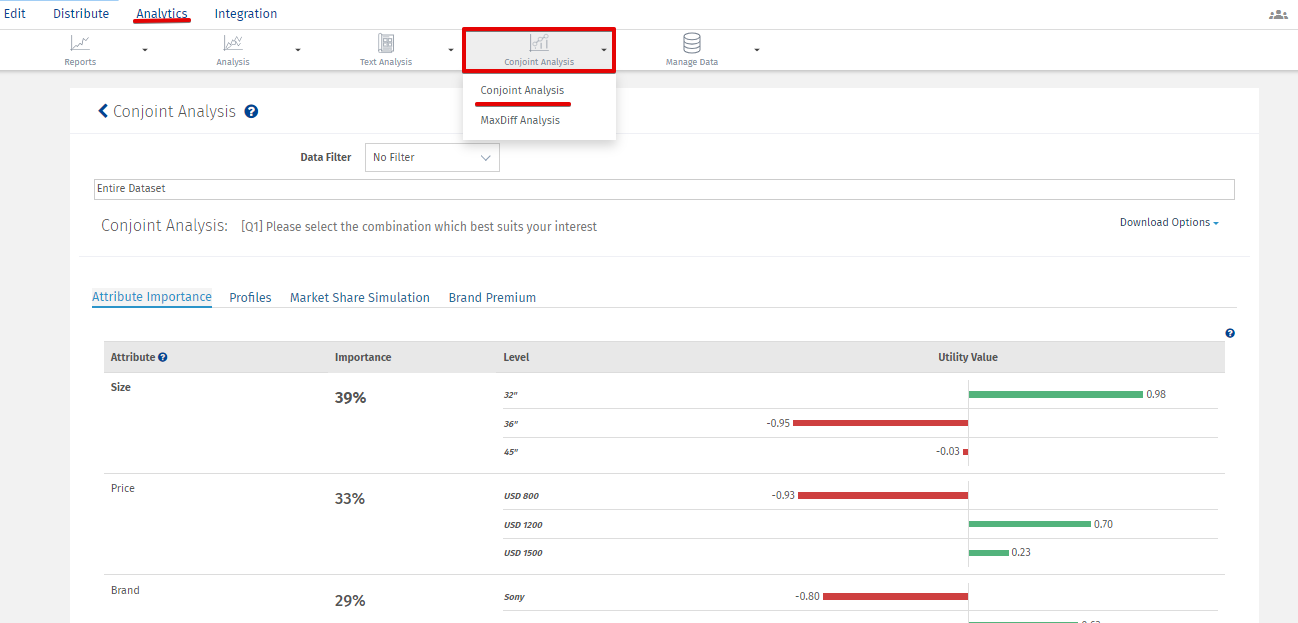

All the Conjoint related tools can be accessed by clicking on:

  • Login »  Surveys »  Reports »  Choice Modelling »  Conjoint Analysis
